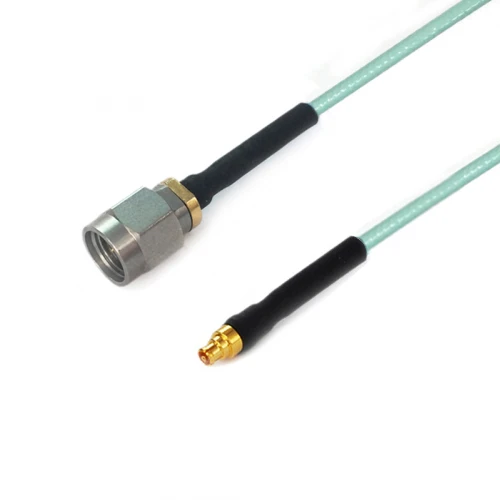

Coaxial cable is any cable with the main channel encompassed by an insulator (dielectric), which is covered by a conductive shield and, typically, an external jack. The shield layer might be strong or twisted or mixes with at least one layer. The term coaxial comes from the inward conductor and the external shield having a typical focal hub. Coaxial cable termination varies from other protected cable as the measurements for all layers/segments are deliberately controlled to give steady dispersing, so it can work as a transmission line.
Determination of the best possible cable for an application includes a few boundaries. The trademark impedance (typically 50 ohms, however it tends to be 75, 92 – 95, or different qualities) is controlled by the dielectric of the internal encasing and the radii of the inward and external conveyors.
The coax termination might be isolated into two sorts – adaptable and unbending. Adaptable cables incorporate the fundamental single-line persuade appeared above, in addition to others including biaxial (the old two-line TV cable), coaxial (wound pair inside a round and hollow shield), triaxial (two cajole lines with shields in addition to a typical external shield), and semi-adaptable (additionally called comparable or hand-formable cable, where the external shield is interlaced, loaded up with bind, and can be hand-molded for a predetermined number of twists), and semi-unbending (SR).
